Recording computational steps

Analysis can usually be divided into steps

1. Preprocessing of data

   • Getting data into the right format
   • Creating meshes

2. Running the main analysis

   • Running simulations
   • Training a model

3. Postprocessing
   • Extracting results
   • Creating tables
   • Creating figures

• You should make sure that these steps are documented well and preferably automated

Example workflow

├── LICENSE
├── README.md
├── code
│   ├── run-pre-process.py
│   ├── run-analysis.py
│   └── run-post-process.py
├── raw_data
│   └── raw_data.txt
└── requirements.txt

python3 code/run-pre-process.py raw_data/raw_data1.txt -o data/data1.csv
python3 code/run-analysis.py data/data1.csv -o results/results1.csv
python3 code/run-post-process.py results/results1.csv -o figures/figure1.png

Creating scripts that can take command line arguments

It is a good idea to make it possible to pass arguments

• Makes it easy to change directories
• Makes it easy to run on clusters where the paths might not be relative

Tools to create automated workflows

bash
Create script called run_all_experiments.sh

for file in file1 file2; do
    python3 code/run-pre-process.py raw_data/${file}.txt -o data/${file}.csv
    python3 code/run-analysis.py data/${file}.csv -o results/${file}.csv
    python3 code/run-post-process.py results/${file}.csv -o figures/${file}.png
done

Tools to create automated workflows

python
Create script called run_all_experiments.py

import subprocess as sp

for file in ["file1", "file2"]:
    sp.run(["python3", "code/run-pre-process.py", f"raw_data/{file}.txt", "-o",  f"data/{file}.csv"])
    sp.run(["python3", "code/run-analysis.py", f"data/{file}.csv", "-o", "results/{file}.csv"])
    sp.run(["python3", "code/run-post-process.py", f"results/{file}.csv", "-o", "figures/{file}.png"])

Other workflow tools

• make using Makefile
• Snakemake
  • also checkout https://coderefinery.github.io/reproducible-research/workflow-management/

Exercise:

Visit: https://github.com/finsberg/word-count

• Create a new repository using this template (i.e click Use this template)
• Clone the repository locally

├── LICENSE
├── README.md
├── code
│   ├── count.py
│   └── plot.py
├── data
│   ├── LICENSE_TEXTS.md
│   ├── abyss.txt
│   ├── isles.txt
│   ├── last.txt
│   └── sierra.txt
├── environment.yml
├── requirements.in
└── requirements.txt

• Create an environment and install the dependencies

  • Instructions are written in the README file

• Do Exercise 1

Verifying computations using tests

It is essential that we know that our program is working correctly

# src/code.py

def find_first_word_that_starts_with(word_list: list[str], starts_with: str) -> str | None:

    for word in word_list:
        if word.startswith(starts_with):
            return word
    return None

# tests/test_code.py

def test_find_first_word_that_starts_with():
    lst = ["This", "is", "a", "test"]
    assert find_first_word_that_starts_with(lst, "t") == "This"

Use pytest to run tests in python

Install pytest

python3 -m pip install pytest

Run pytest

python3 -m pytest

This will search for all files starting or ending with test and run all functions in those files that starts with test

Exercise 2:

Add tests to the word count example.

Create a folder called tests and a file inside it called test_word_count

Hard to write tests?

If you find it hard to write tests, if might be a sign that you should refactor your code. It is a good habit to write the tests before writing the actual code. That forces you to think about how your code can be used from the "outside". This is called test-driven development (TDD)

How to write a test for this code?

def run_analysis():

    data = "data/data.txt"
    ...
    # Do a lof of analysis which generates a numpy array results
    ...
    numpy.save("results.npy", results)

Note: You are confident that the results are correct so we just want to make sure that if we change any code in the analysis (or something else), then the results remains the same

Poor mans tests

1. Run the analysis once. This will create a file results.npy
2. Change name of that file from results.npy to expected_results.npy
3. Write the test

   def test_run_analysis():
       expected_results = numpy.load("expected_results.npy")
       run_analysis()
       results = numpy.load("results.npy")
       assert results == expected_results



But ideally you should split the code into smaller functions and tests them one by one.

Adding automation to GitHub

It is handy to have your tests being rerun every time you push to the repository. This can be done using GitHub actions which only requires you to first create a folder .github/workflows and then put a .yml inside it.

• Do Exercise 3 in the word-count repository.

Automation to reproduce results

GitHub actions can also be used to reproduce your results and upload the results and figures as an artifact.

• Do Exercise 4

Create a release

We now have a version that we are happy with, and can create a release

• Do exercise 5

Capturing the environment

Create a docker image containing all the dependencies, code and data

• Do exercise 6

Creating a workflow for pushing the docker image

• Do exercise 7

Example repositories

• https://github.com/scientificcomputing/example-paper
• https://github.com/scientificcomputing/example-paper-fenics
• https://github.com/ComputationalPhysiology/automatic-motion-estimation
• https://github.com/ComputationalPhysiology/ciucci-2024

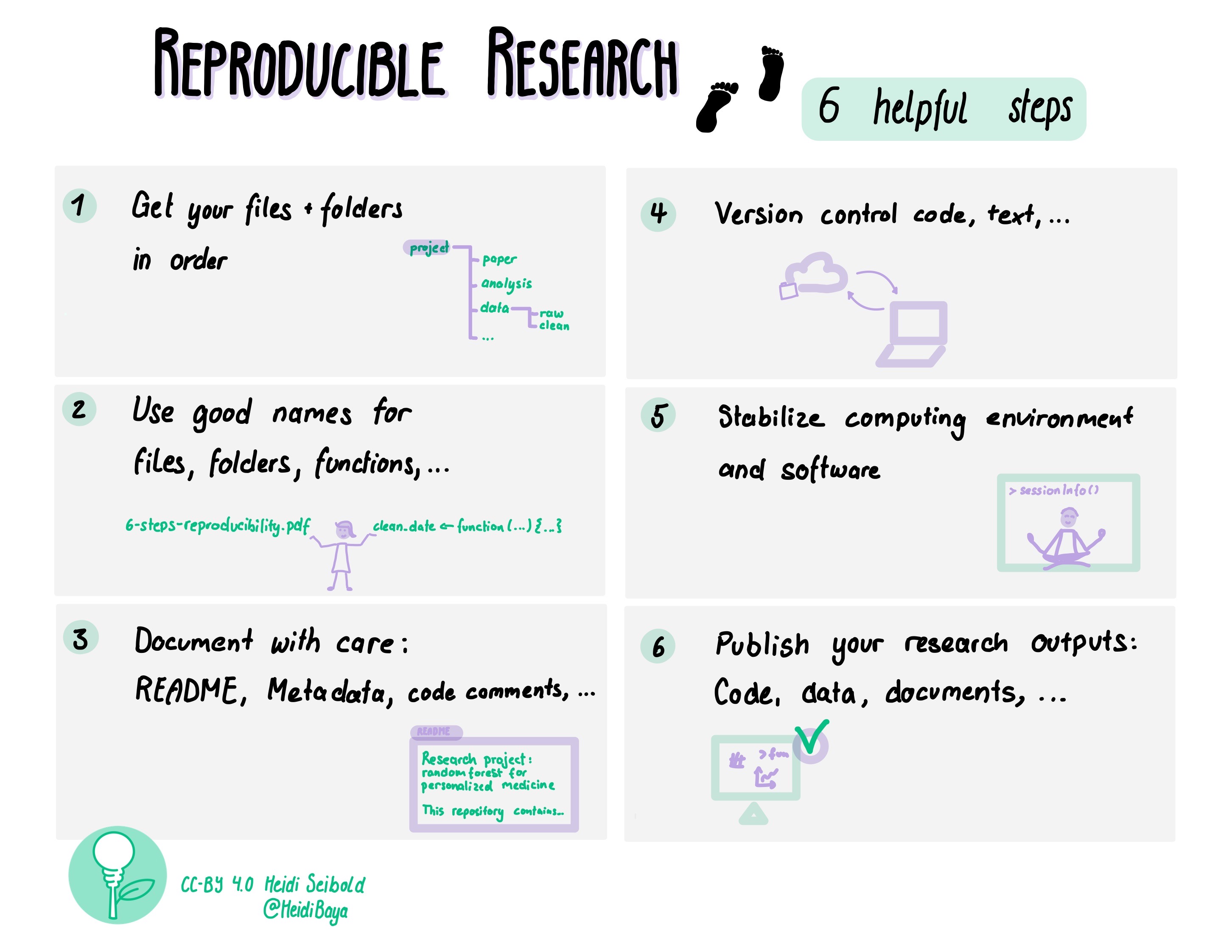

Image is used under a CC-BY 4.0 license. https://twitter.com/HeidiBaya/status/1579385587865649153.
