Performance testing for network assembly

This script check the scalability of the network assembly, given an increasing number of bifurcations. We start by importing the necessary modules

import datetime
import shutil
from pathlib import Path

from mpi4py import MPI

import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns

from dolfinx.common import timing
from dolfinx.io import VTXWriter
from networks_fenicsx import (
    HydraulicNetworkAssembler,
    NetworkMesh,
    Solver,
    network_generation,
)
from networks_fenicsx.post_processing import export_functions, extract_global_flux

Next, we define the boundary condition that we will prescribe for the pressure. Here, we let \(p=y\).

def p_bc(x):
    return x[1]

Next, as we will evaluate the performance of the assemble, we will check it with and without a cache of the compiled C-kernels.

cache_dir = Path(".benchmarking_cache").absolute()
cache_dir.mkdir(exist_ok=True, parents=True)

We also provide some compilation arguments for the C-kernels.

cffi_options = ["-Ofast", "-march=native"]
jit_options = {"cache_dir": cache_dir, "cffi_extra_compile_args": cffi_options}

Next, we will loop over a tree that has n generations, where each generation doubles the number of branches.

ns = [3, 6, 12, 16]
tracked_calls = [
    "nxfx:HydraulicNetworkAssembler:__init__",
    "nxfx:HydraulicNetworkAssembler:compute_forms",
    "nxfx:HydraulicNetworkAssembler:assemble",
    "nxfx:NetworkMesh:build_mesh",
    "nxfx:NetworkMesh:build_network_submeshes",
    "nxfx:NetworkMesh:create_lm_submesh",
    "nxfx:Solver:solve",
]
timings: dict[str, dict[int, float]] = {
    "BuildMesh": {},
    "BuildSubMeshes": {},
    "ComputeIntegrationData": {},
    "CreateLMSubmesh": {},
    "Compile": {},
    "CompileCached": {},
    "Assemble": {},
    "Solve": {},
}
previous_timing = {call: datetime.timedelta(0) for call in tracked_calls}
for n in ns:
    if cache_dir.exists():
        shutil.rmtree(cache_dir, ignore_errors=True)

    # Create tree on root node
    if MPI.COMM_WORLD.rank == 0:
        G = network_generation.make_tree(n=n, H=n, W=n)
    else:
        G = None
    network_mesh = NetworkMesh(G, N=1, color_strategy="smallest_last")
    del G

    _, build_mesh_timing = timing("nxfx:NetworkMesh:build_mesh")
    timings["BuildMesh"][n] = (
        build_mesh_timing.total_seconds()
        - previous_timing["nxfx:NetworkMesh:build_mesh"].total_seconds()
    )
    previous_timing["nxfx:NetworkMesh:build_mesh"] = build_mesh_timing

    _, build_submeshes_timing = timing("nxfx:NetworkMesh:build_network_submeshes")
    timings["BuildSubMeshes"][n] = (
        build_submeshes_timing.total_seconds()
        - previous_timing["nxfx:NetworkMesh:build_network_submeshes"].total_seconds()
    )
    previous_timing["nxfx:NetworkMesh:build_network_submeshes"] = build_submeshes_timing

    _, create_lm_submesh_timing = timing("nxfx:NetworkMesh:create_lm_submesh")
    timings["CreateLMSubmesh"][n] = (
        create_lm_submesh_timing.total_seconds()
        - previous_timing["nxfx:NetworkMesh:create_lm_submesh"].total_seconds()
    )
    previous_timing["nxfx:NetworkMesh:create_lm_submesh"] = create_lm_submesh_timing

    # Setup assembler
    assembler = HydraulicNetworkAssembler(network_mesh, flux_degree=1, pressure_degree=0)

    _, compute_integration_data_timing = timing("nxfx:HydraulicNetworkAssembler:__init__")
    timings["ComputeIntegrationData"][n] = (
        compute_integration_data_timing.total_seconds()
        - previous_timing["nxfx:HydraulicNetworkAssembler:__init__"].total_seconds()
    )
    previous_timing["nxfx:HydraulicNetworkAssembler:__init__"] = compute_integration_data_timing

    # Compute forms (without cache)
    assembler.compute_forms(p_bc_ex=p_bc, jit_options=jit_options)

    _, compile_forms_timing = timing("nxfx:HydraulicNetworkAssembler:compute_forms")
    timings["Compile"][n] = (
        compile_forms_timing.total_seconds()
        - previous_timing["nxfx:HydraulicNetworkAssembler:compute_forms"].total_seconds()
    )
    previous_timing["nxfx:HydraulicNetworkAssembler:compute_forms"] = compile_forms_timing

    # Compute forms (with cache)
    assembler.compute_forms(p_bc_ex=p_bc, jit_options=jit_options)
    _, compile_forms_timing = timing("nxfx:HydraulicNetworkAssembler:compute_forms")
    timings["CompileCached"][n] = (
        compile_forms_timing.total_seconds()
        - previous_timing["nxfx:HydraulicNetworkAssembler:compute_forms"].total_seconds()
    )

    # Assemble system
    solver = Solver(assembler)
    solver.assemble()
    _, assemble_timing = timing("nxfx:HydraulicNetworkAssembler:assemble")
    timings["Assemble"][n] = (
        assemble_timing.total_seconds()
        - previous_timing["nxfx:HydraulicNetworkAssembler:assemble"].total_seconds()
    )
    previous_timing["nxfx:HydraulicNetworkAssembler:assemble"] = assemble_timing

    if n < 20:
        sol = solver.solve()
        _, solve_timing = timing("nxfx:Solver:solve")
        timings["Solve"][n] = (
            solve_timing.total_seconds() - previous_timing["nxfx:Solver:solve"].total_seconds()
        )
        previous_timing["nxfx:Solver:solve"] = solve_timing

        # Export results
        outdir = Path("demo_perf_output").absolute()
        outdir.mkdir(exist_ok=True, parents=True)
        export_functions(sol, outpath=outdir / f"n{n}")
        global_flux = extract_global_flux(network_mesh, sol)
        with VTXWriter(
            global_flux.function_space.mesh.comm, outdir / f"n{n}" / "global_flux.bp", [global_flux]
        ) as vtx:
            vtx.write(0.0)
    del assembler
    del solver
    del network_mesh

  Residual norms for NetworkSolver_ solve.
  0 KSP Residual norm 6.000000000000e+00
  1 KSP Residual norm 4.964990726696e-15

  Residual norms for NetworkSolver_ solve.
  0 KSP Residual norm 3.394112549695e+01
  1 KSP Residual norm 3.570214658336e-14

  Residual norms for NetworkSolver_ solve.
  0 KSP Residual norm 5.430580079513e+02
  1 KSP Residual norm 8.727547353622e-13

  Residual norms for NetworkSolver_ solve.
  0 KSP Residual norm 2.896309375740e+03
  1 KSP Residual norm 5.464424064967e-12

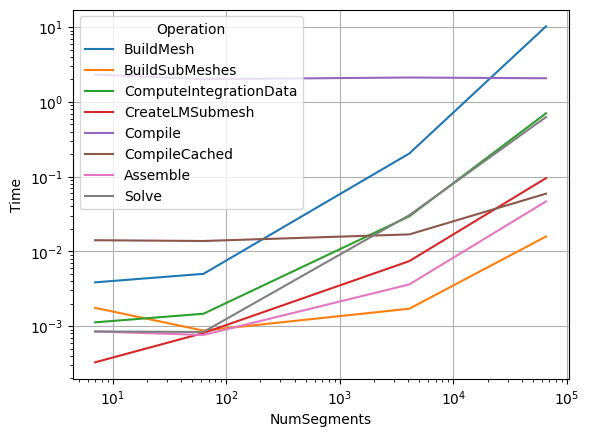

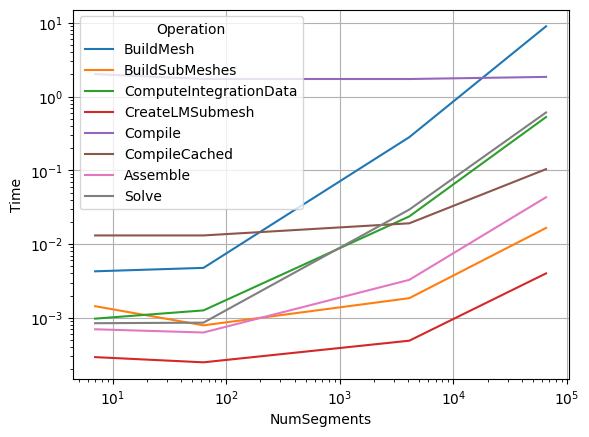

Finally, we plot the results.

flattened_data = []
for operation in timings.keys():
    for n in ns:
        flattened_data.append(
            [operation, sum(2**i for i in range(n)), timings[operation].get(n, None)]
        )
dataframe = pd.DataFrame(flattened_data, columns=["Operation", "NumSegments", "Time"])

fig, ax = plt.subplots()
plot = sns.lineplot(data=dataframe, x="NumSegments", y="Time", hue="Operation", ax=ax)
ax.set(xscale="log", yscale="log")
ax.grid(True)
fig.savefig("demo_perf.png", bbox_inches="tight")
plt.show()
